Car Crusher Machine
2:Has a bigger processing capacity, saving manpower;
3:Has a strong body and structure, long lifetime, and high work safety;
4:Has the best separating and sorting effect that can separate the small particle raw material;
5:Dust collecting device of main crusher is a unique reverse suction design with strong power, equipped with a pulse dust removal system, green and environment protection;
6:Big power hydraulic drive system is especially suitable for the shredding of waste car;
Product Details
Machine Introduction:
Car crusher machine is a large-scale automatic crushing equipment for whole vehicle, which adopts most advanced technology in the world and best configuration to realize whole car crushing and dismantling, so as to separate cable wires, iron, aluminum, non-metals and so on to achieve goal of resource classification and scrap metal recycling.
With development of the economy and improvement of living standards, automatically dismantling and recycling of used cars will become main trend, so BSGH manufacturer develop and design this model car crusher machine, effectively saving labor, realizing automatic crushing and dismantling of scrapped cars.
Machine structure includes main crusher, magnetic separator, eddy current separator, pulse dust collect, convey belts, hydraulic control system, electrical control system, and so on.
Main crusher: Crushing and shredding waste cars into small pieces;
Magnetic separator: Removing iron from scrap metal ;
Eddy current separator: Separate metallic and non-metallic particles and final product is electric cable wires, scrap aluminum, and non-metallic particles ;
Pulse dust collector: Collect dust in processing to avoid environmental pollution;
Processing capacity of this automotive recycling equipment is as follows:
Can process and recycle about 10 cars per hour if main crusher power is 550KW;
Can process and recycle about 7 cars per hour if main crusher power is 450KW;

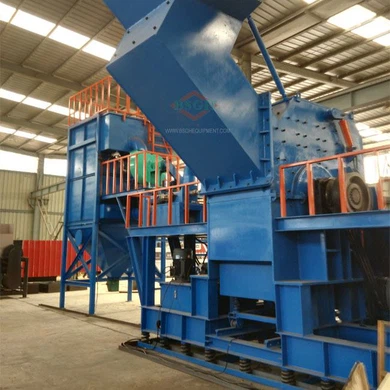

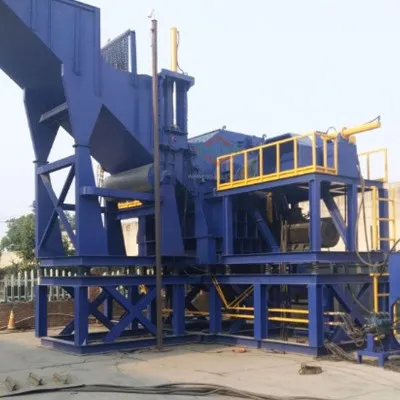

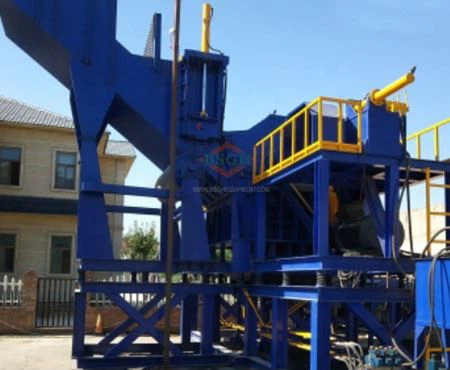

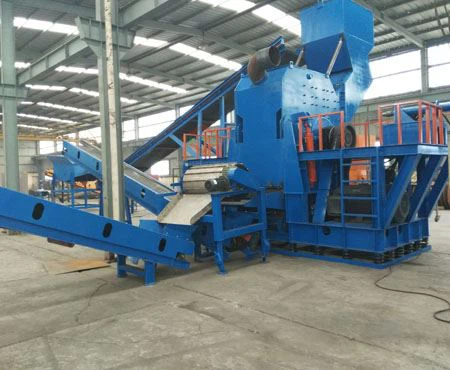

Machine Pictures:
![]() | ![]() |
Machine Technical Data:
| Machine Name | Car recycling machine |
| Machine Model | BS-AN2000 |
| Processing Capacity | 8-10T/H |
| Machine Size | 20000*30000*5000MM |
| Motor Power Of Main Crusher | 550KW/450KW |
| Motor Power Of Eddy Current Separator | 19.95KW |
| Rotor Range | 1240MM |
| Main Shaft Size | 260MM |
| HammerHead | 27 pieces |
| Crusher Sieves Diameter | 70MM |
Machine Working Process:
Can process raw material: waste car or vehicle.
Whole waste car is sent to main crusher for shredding and crushing by feeding and conveying system. Main crusher crushes whole car into small pieces. After crushing process, iron will be removed from small crushed material by magnetic separator first and then be separated metals from non-metals by eddy current separator. It is worth noting that there will be residual rubber sheets on cable wires, and it is necessary to manually select and sort rubber sheets from non-metallic particles.
Processing Raw Material:
![]() | ![]() | ![]() |

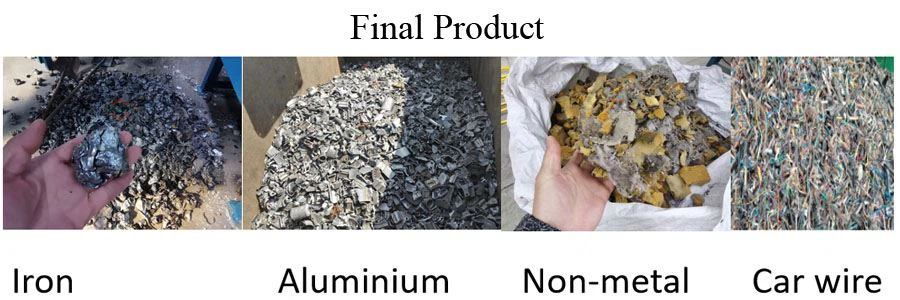

Final Product:
![]() |
Car Crusher Machine Advantages:
1: BSGH factory exclusive selling, dismantling whole car, and recycling scrap metal automatically, quickly and high efficiently;
2: Has a bigger processing capacity, saving manpower;
3: Has a strong body and structure, long lifetime, and high work safety;
4: Has best separating and sorting effect, can separate small particle raw material;
5: Dust collecting device of main crusher is a unique reverse suction design with strong power, equipped with a pulse dust removal system, green and environmental protection;
6: Big power hydraulic drive system is especially suitable for shredding of waste cars;
BSGH Equipment After-Sales Service:
1:One year warranty and support overseas technical;
2: Support 24 hours online services, call me:008613772508206 anytime;
