BS-H1600 Heavy-duty Hammer Mill Shredder For Sale
2. Handles a Wide Range of Metal Scrap: Processes engine parts, aluminum scrap, metal drums, cans, and other bulky metal waste, with suitable preparation before feeding.
3. Siemens PLC Control: Centralized operation and monitoring help reduce manual intervention.
4. Large Crushing Chamber: Features a 1,600 mm internal diameter.
5. 320 kW Standard Power: Power, color, and machine layout can be customized to suit your requirements.
Product Details

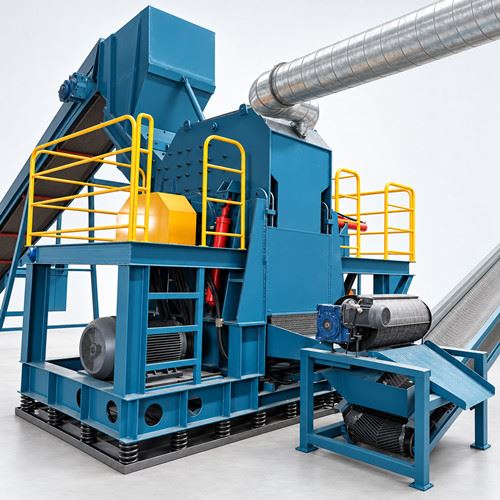

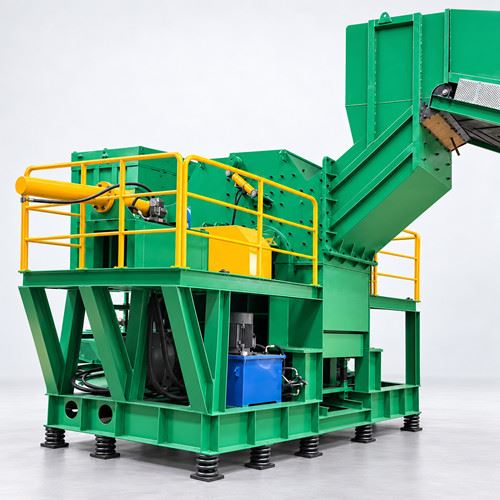

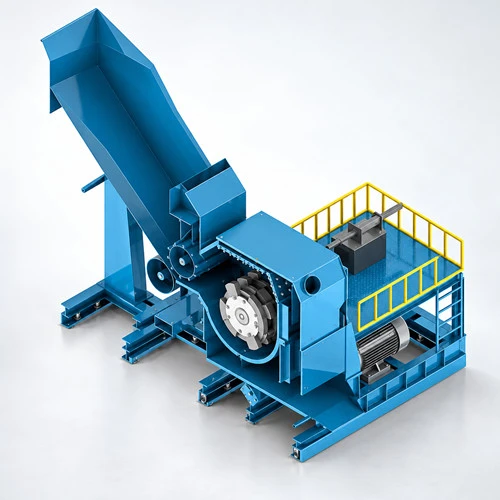

BS-H1600 Heavy-Duty Hammer Mill shredder for Scrap Metal
BSGH BS-H1600 heavy-duty hammer mill shredder reduces bulky scrap metal into smaller pieces for easier handling, transport and separation. With a processing capacity of up to 6 t/h, it is designed for continuous operation in large scrapyards and metal recycling plants.
Inside 1600 mm crushing chamber, a high-speed rotor drives heavy-duty hammers that repeatedly strike and break down the scrap. Once reduced to the required size, your material exits through the bottom discharge for downstream sorting or further processing. For more models, please check our hammer mill crusher for reference.
BS-H1600 industrial Hammer mill shredding line in USA
Order Date: February 2025
Equipment: BS-H1600 hammer mill shredding line with drum magnetic separator
Background: Richard runs a large recycling business in the United States, collecting scrap cars from workshops and individual owners and handling multiple recycling stages at one facility. As his business grew, he needed to process larger scrap volumes efficiently while keeping labor costs under control.
Solution: BSGH recommended BS-H1600 industrial hammer mill shredder with a drum magnetic separator to combine size reduction and iron separation. The hammer mill breaks down scrap car engines into smaller pieces, while the drum magnetic separator removes iron and steel from the crushed material for further sorting and recycling.
Watch the line in action, from feeding scrap car engines to discharging the processed material. For Richard, the goal was more than a larger machine-it was a reliable processing line that could grow with his business.
BS-H1600 Hammer Mill shredder Technical Specifications
BS-H1600 hammer mill shredding machine's 1600 mm crushing chamber provides the working space needed for bulky scrap metal and high-volume processing.
| Model | BS-H1600 hammer mill shredder |
| Crushing chamber inner diameter | 1600 mm |
| Standard hammer quantity | 22 pcs |
| Standard hammer weight | 45 kg each |
| Motor power | 320 kw |
Final motor power, feeding equipment and screen openings are selected for the material and required output. Confirm the complete configuration before ordering.

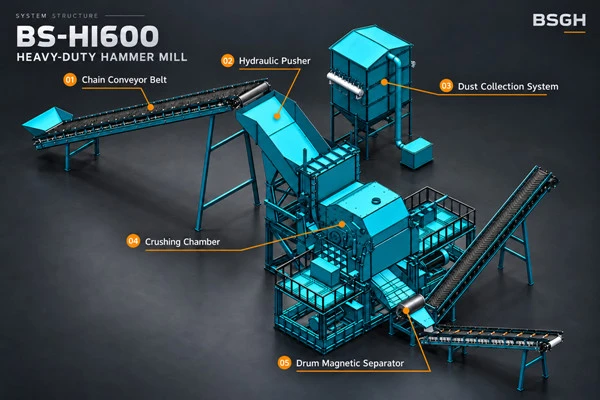

Key Components of BS-H1600 metal Hammer Mill
BS-H1600 metal hammer mill integrates feeding, crushing, discharge, dust collection and electrical control in one system. Each component supports a smooth flow from scrap feeding to material recovery.
Chain conveyor: Automatically transports scrap metal to the machine, reducing manual feeding effort.
Hydraulic pusher: Controls the feed rate, delivering material steadily into the crushing chamber.
Dust Collection System: Captures dust generated during crushing, helping maintain a cleaner working environment.
Crushing chamber: Heavy-duty hammers break down scrap metal, while screens help control the size of the discharged material.
Drum Magnetic Separator: A magnetic separator removes iron and steel from the crushed material for further recovery.
Advantages of BS-H1600 shredder for crushing metals
01
Faster Maintenance, Less Downtime
Mn 18 hammer and easy-access screens simplify wear-part changes, helping reduce maintenance time and get the machine back to work sooner.
02
Safer Inspection and Maintenance
Safety railings around elevated work areas provide added protection during routine inspections and maintenance.
03
Built for Heavy-Duty Crushing
The reinforced main shaft is designed to withstand repeated impact loads. Specializing crushing hard to handle metal scraps covering car scrap and motors etc.
04
Better Dust Control
The dust collection system captures dust and fine particles during crushing, helping keep the work area cleaner.
Raw Materials
BS-H1600 hammer mill shredder machine processes a range of light and heavy scrap metals. Feed preparation and equipment configuration are tailored to the material type, size and processing requirements.
- Automotive Scrap
Car wheels, engine parts and other suitable components from end-of-life vehicles.

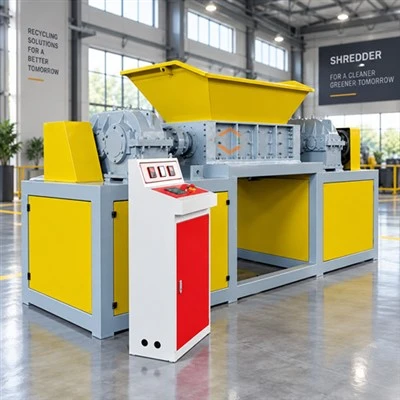

For scrap aluminum engines, you can also explore our MS-D1600 aluminum car engine crusher, which uses a dual-shaft shredding system.
- Aluminum Scrap
Aluminum cans, profiles, and scrap aluminum door and window frames.
- Industrial & Household Scrap
Prepared household appliances, bicycles and suitable mixed metal scrap from industrial and household sources.
- Motor Scrap
Electric motor rotors and related metal components.
Packing & Delivery

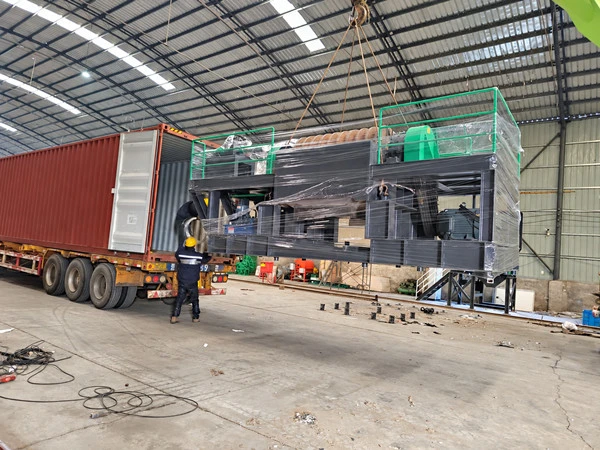

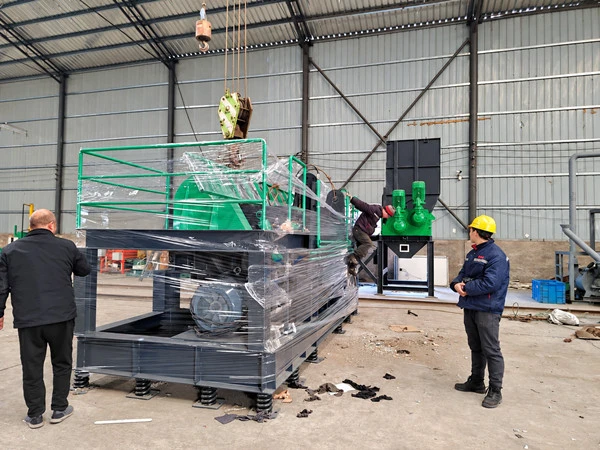

BS-H1600 for metals is shipped in high-cube containers, with major components securely fastened to minimize movement and reduce the risk of damage during handling and long-distance transport.
Customer Feedback
Hear from customers about BS-H1600 hammer mill shredder's crushing performance, maintenance needs, and day-to-day operation.
"
"We've processed quite a mix through our BS-H1600 crusher so far. Its performance has been very solid."
Anthony
United States
"
"We inspect it regularly, keep up with the wear parts, and haven't had to spend excessive time on BS-H1600 hammer mill maintenance."
Rosalie
Canada
"
"Hammers of BS-H1600 equipment last a long time. We're still on our first set after months of running."
Bogdan
Romania
FAQ
Does BS-H1600 Hammer mill shredder require anchor bolts?
No, you just need to install BS-H1600 hammer mill shredder on a level concrete foundation with sufficient load-bearing capacity. Always follow the final engineering drawings for foundation specifications and any anchoring requirements.
Can BS-H1600 Hammer mill shredder process scrap household appliances?
Yes. BS-H1600 hammer mill shredder can be integrated with separation line for properly prepared scrap appliances. We have designed two lines for two U.S. customers to process refrigerators and air conditioners. Share your appliance types and required capacity, and we'll customize a suitable drawing for you.
