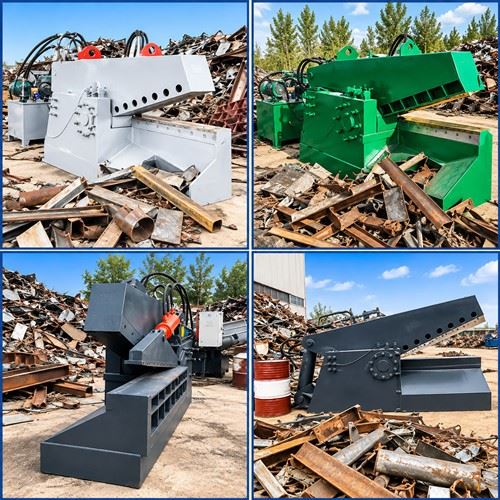

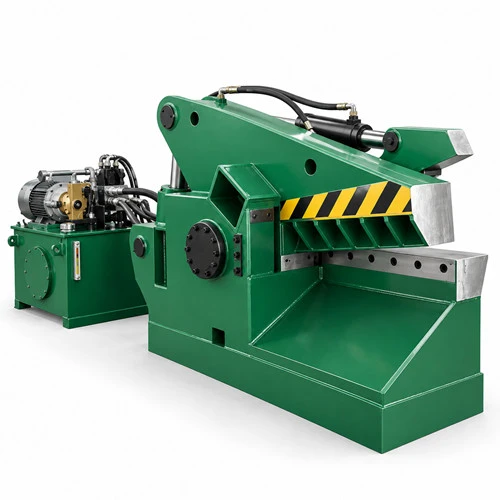

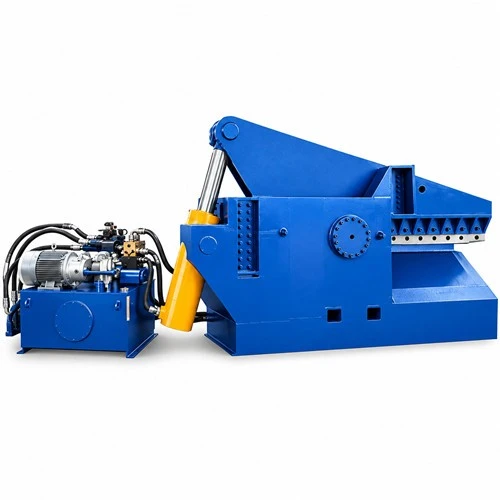

AS-2500 Heavy-Duty Hydraulic Metal Shear Machine For Sale
2. 1000 mm Blade Length & 480 mm Maximum Opening: Accommodates large metal scrap for efficient cutting.
3. Versatile Scrap Metal Cutting: Handles round steel bars, square bars, angle iron, channel steel, and other structural steel scrap.
4. 7–12 Cutting Cycles per Minute: Supports steady, efficient scrap metal cutting to improve processing productivity.
5. Dual 15 kW Motors: Provide reliable power for demanding hydraulic shearing operations.
Product Details
AS-2500 Heavy-Duty Hydraulic Metal Shear for Sale
AS-2500 hydraulic metal shear is designed to cut long, bulky scrap metal into smaller, manageable pieces. With a maximum shearing force of 2,500 kN, a 1,000 mm blade, and a maximum blade opening of 480 mm, it handles steel bars, angle iron, channel steel, and other structural metal scrap.
Ideal for scrapyards, metal recycling facilities, vehicle dismantling yards, and demolition recycling operations.
If you require other shearing force, please check our metal shear for more.
AS-2500 industrial Metal Shear No-Load Test Video
Watch BSGH AS-2500 metal shear in action during a no-load test, demonstrating its automatic and single-cycle operation modes.
How does it work?
- Hydraulic hold-down first presses down to secure the scrap metal, then the cutting blade moves down to shear it. After cutting, the blade retracts and the hold-down releases, ready for the next cycle.
- In automatic mode, AS-2500 repeats this cutting sequence continuously. In single-cycle mode, it completes one full press-cut-return cycle at a time.
This no-load test demonstrates the smooth, coordinated movement of both mechanisms.
Featuring a split-type design and 2,500 kN of maximum shearing force, AS-2500 hydraulic metal shear is built for heavy-duty scrap metal cutting in scrapyards and recycling facilities.
AS-2500 Scrap Metal Shearing machine Specifications
AS-2500 scrap metal shearing machine uses two 15 kW motors and a dual-pump hydraulic system to support stable, repetitive cutting.
|
Model
|
AS-2500 scrap metal shearing machine
|
|---|---|
|
Maximum shearing force
|
2500 kN
|
|
Hydraulic system pressure
|
21.5 MPa
|
|
Motor power
|
15 kW × 2
|
|
Blade length
|
1000 mm
|
|
Maximum blade opening
|
480 mm
|
|
Cutting frequency
|
7–12 cycles/min
|
|
Hydraulic system
|
Dual-pump system
|
|
Operating modes
|
Single-cycle and continuous
|
|
Controls
|
Buttons and foot pedal
|

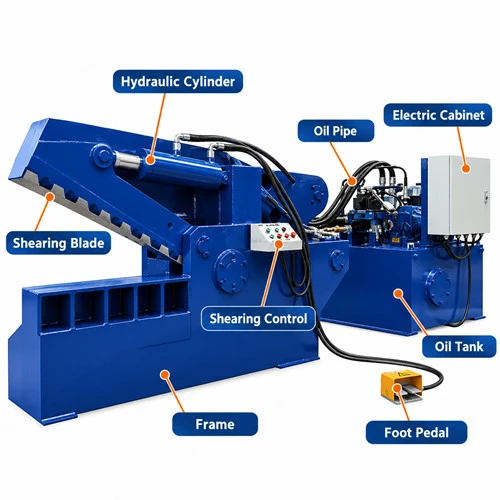

AS-2500 Split-Design Hydraulic Shear Structure
The split-design structure provides access to the main mechanical, hydraulic and electrical components.
- Shearing Part: Before cutting, pressing mechanism holds the scrap metal firmly in place. The moving upper blade then closes against fixed lower blade, cutting the metal into shorter, manageable pieces.
- Hydraulic System: Hydraulic pump, oil tank, cylinders, and hydraulic pipes work together to provide the force needed for pressing and shearing, ensuring smooth, controlled movement during operation.
- Electrical Control System: Electrical control cabinet manages as-2500 metal shearing machine's operation, while the control panel allows operators to start and stop the machine, control the cutting and blade return movements, and activate the emergency stop when needed.
- Heavy-Duty Steel Frame: The welded steel frame provides strong, stable support for the entire machine, helping it withstand the high forces generated during heavy-duty scrap metal cutting.
Advantages of the AS-2500 Hydraulic Shear for metal scrap
01
Durable Alloy Steel Blades
Made from wear-resistant 60Si2CrV alloy steel, the blades withstand repeated cutting, helping extend blade life and reduce replacement frequency.
02
Easy Access for Maintenance
The split-type design provides easier access to key components, making routine inspections, maintenance, and repairs more convenient.
03
Two Operating Modes
Choose single-cycle mode for one cutting cycle at a time or automatic mode for repeated cutting, depending on your processing needs.
04
Convenient Foot-Pedal Control
The foot pedal offers an alternative way to start the cutting cycle, giving operators more flexibility while keeping hands clear of the cutting area.
AS-2500 Hydraulic Metal Shear Maintenance Guidelines
Regular maintenance helps keep your AS-2500 hydraulic metal shear running reliably and reduces unexpected downtime. Follow the supplied maintenance manual and have all inspections and servicing carried out by qualified personnel.
Monitor Hydraulic Oil Temperature
If the hydraulic oil temperature is below 0°C (32°F), warm it up according to the operating manual before use. If it rises above 70°C (158°F), stop the machine, identify the cause, and resolve the issue before restarting.
01
Perform Pre-Startup Checks
Before starting the machine, make sure all moving parts and the directional control valve are in their correct positions. Check the hydraulic oil level and condition to ensure the system is ready for operation.
02
Carry Out Routine Maintenance
Inspect bolts, hydraulic pipe fittings, and seals for looseness, wear, or leaks. Keep hydraulic components clean, and replace filters and hydraulic oil according to the maintenance schedule.
03
Inspect Key Components Every Six Months
Check the motor bearings and hydraulic pressure gauge every six months. Use the recommended lubricants and follow the manufacturer's maintenance instructions.
04
Shut Down Safely After Use
Turn off the machine and isolate the main power supply after operation. Before performing any maintenance, disconnect the power and release stored hydraulic pressure as instructed in the manual.
05
Raw Materials
AS-2500 hydraulic metal shear handles a wide range of ferrous scrap, including channel steel up to 280 × 124 × 11.5 mm, angle steel up to 160 × 160 × 12 mm, round steel up to Ø80 mm in diameter, and square steel up to 75 × 75 mm. It can also cut steel plates up to 20 mm thick × 700 mm wide or 40 mm thick × 300 mm wide.
Actual cutting capacity depends on the steel grade, material strength, and cross-sectional shape.
Send us photos of your scrap with its dimensions so we can check whether AS-2500 suits your material.
Packing & Delivery
AS-2500 hydraulic metal shear is securely packed in a sturdy wooden crate to protect it from moisture and damage during transportation.
We also provide packing photos and shipping information, so you can track your shipment and stay updated until the machine arrives at your destination port.
Customer Feedback
Customers share their experience with everyday cutting performance, operation and maintenance after using AS-2500 hydraulic shearing for metals.
"
We've put quite a bit of scrap through our AS-2500 shearing machine already. It's been solid from day one.
Ethan
Canada
"
Maintenance of AS-2500 metal shear is pretty straightforward, which is a big plus when you've got a busy scrap yard to run.
Andrew
United States
"
AS-2500 hydraulic shear does exactly what we need. Good cutting power, smooth operation, and no unnecessary complications.
Laurent
France
FAQ
Why won't my AS-2500 hydraulic metal shear return automatically or start the next cutting cycle?
A faulty limit switch, proximity sensor, or control component may prevent AS-2500 from completing its cutting cycle. Stop the machine, isolate the power, and contact our technical team or a qualified technician for inspection and troubleshooting according to the service manual.
Why can my AS-2500 hydraulic metal shear cut thick metal but struggle with thin scrap?
Thin scrap may bend or slip between the blades instead of being cut cleanly. This can happen when the blades are worn or the blade clearance is incorrect. Check the material positioning and have a qualified technician inspect the blades after safely shutting down and isolating AS-2500 hydraulic metal shear.
How often should I replace the blades on my AS-2500 hydraulic metal shear?
Blade life depends on the type of metal being cut, cutting frequency, and maintenance. Inspect the blades regularly and sharpen or replace them when they become worn or cutting performance declines, following the service manual. We also recommend ordering spare blades with the machine to minimize downtime.
