Aluminum Clad Iron Radiator Stripper Machine
1:suitable for aluminum clad iron radiator
2:can process inner metal tube diamter 20mm,22mm,25mm and 27mm,if have other size,we can customized for you.
3:there's much this raw material in the market.
Product Details
Aluminum Clad Iron Radiator Stripper Machine
Aluminum clad iron radiator is consist of the aluminum and the iron core, according to the market demands, we developed one machine for aluminum clad iron radiator stripping machine, our machine can stripping the radiator fast and easily.
Aluminum clad iron radiator stripper machine is an environment-friendly equipment independently developed and manufactured by our company. It is mainly used to separate iron and aluminum in aluminum-clad iron pipes (hereinafter referred to as heat pipes). The equipment has the characteristics of new compact and small footprint, which is economical and applicable.
Korea client good feedback about radiator aluminum iron separating machine as follows:
Machine Structure
The machine consists of a frame, a motor, two reducers, and two power shafts.
Technical Data
| BS-ACS20 aluminum clad iron radiator stripping machine | |
| POWER | 5.5KW |
| WEIGHT | 465KGS |
| SIZE | 1830*700*1280 |
Aluminum Clad Iron Radiator Stripper Machine Operate
1.) The upper power shaft is equipped with two blades, and there is a spacer in the middle of the two blades. According to the diameter of the iron pipe, select the appropriate spacer (the spacer width is 20/22/25/27mm) and adjust the entrance positioning.
2.)The width of the board is such that the iron tube inside the heat dissipation tube is inserted into the gap between the two blades, and at the same time, the two positioning plates can just be caught on both sides of the aluminum foil. Twist the adjustment hand wheel on the machine, adjust the gap between the upper blade edge and the gear on the lower power shaft to one-third of the diameter of the iron tube, and then turn on the iron tube to align the gap between the two blades Plugged in, the heat pipe is rolled into the machine to complete the separation of iron and aluminum.

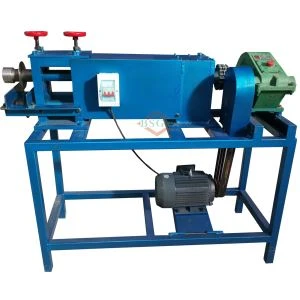

Radiator Stripper Machine Pictures
 radiator recycling machine |  Aluminum iron radiator machine |
Spacer Picture

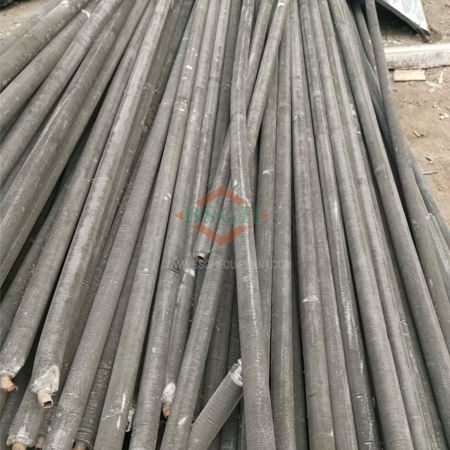

Picture of Raw Materials for Aluminum Clad Iron Radiator:
 aluminum iron radiator |  raw materials for aluminum clad iron radiator stripping machine |
