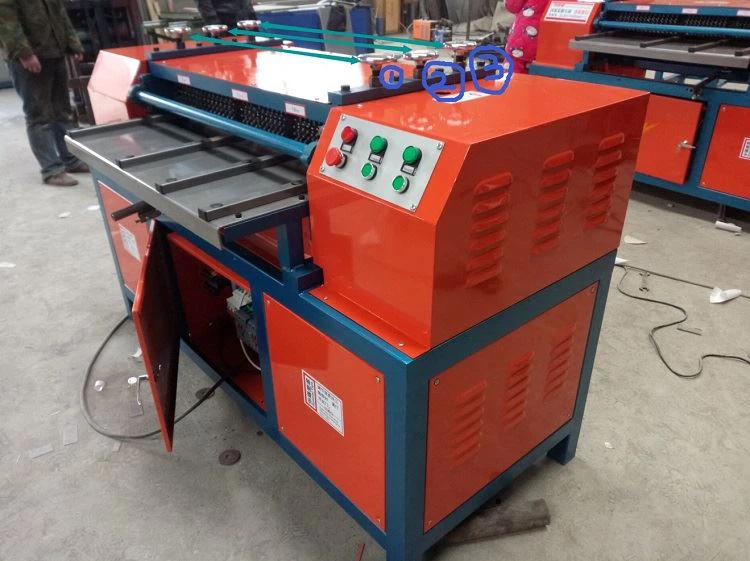

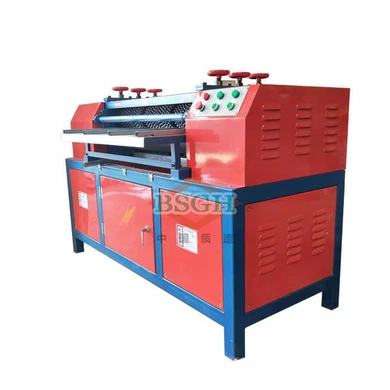

Radiator Copper and Aluminum Separator Machine

Machine Introduction:

BS-1200P radiator copper and aluminum separator machine is designed by BSGH with invention patent, mainly used for separating copper tube and aluminum foil in scrap radiators. Through the blades and compression plate, BS-1200P has 100% precise separation rate and pure copper coil, selling at top price in the market, you can get higher returns.

BS-1200P copper and aluminum separator machine is consisted of a frame, 2 motors with reducers, feeding panel for scrap radiator material, cutting parts, transmission parts, and material separation parts. The radiator stripping machine is suitable for the flat and uncurved scrap radiators from air conditioner (AC), car and industrial refrigeration machine.

Machine Main Parts:

1. Motors: 2 motors, we use Dasu motor, it is Chinese famous motor brand.

2. Reducers: Use the Bo Shan Hong Yao reducers with excellent quality.

3. Electrical control parts: YooTai brand, stable performance.

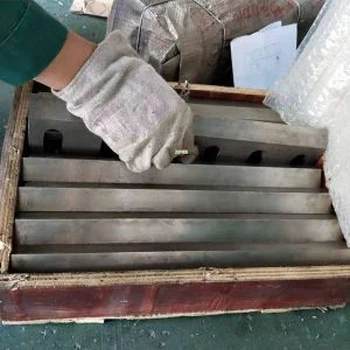

4. Blades: Made of forged steel HHS, made up of 69 pcs blades (29 small blades and 40 big blades).

Machine Technical Data:

● Note:

One machine can process three different copper tube center distances at most;

Usually, most of the scrap radiators in the market are 19mm,21mm, and 25mm.

If your scrap radiator has other distances, pls let us know. We will customize the machine for you.

This machine proved to be the best choice for recycling used radiators.

Machine Advantages:

a. This machine is easy to operate, and the occupied area is small.

b. This machine improves copper recycling efficiency essentially and saves labor.

C. The copper tube will keep complete after being stripped and thus reduce the copper loss to the minimum.

d. After stripping, the copper tube and the aluminum can be separated completely and there is no secondary pollution.

e. BS-1200P can strip and separate all kinds of radiators, such as air conditioner radiators, car radiators, etc, for recycling copper and aluminum.

Machine Structure:

Scrap AC radiator separating machine to cut aluminum foil and separate copper tube one time;

● First through the first row of the roller to pulling the raw material into machine;

● After via second blades roller to cut the aluminum foil;

● Third, the cut aluminum foil and the copper tube will work via third roller pressing, thus can reach fully separating one time.

Material Preparation:

1. Iron heads of radiators must be cut off the two sides of radiators;

2. Radiators must be cut with a band saw according to the width of each Material Inlet;

3. Radiators that are more than 2 layers must be cut into one layer and two layers with the band saw;

4. Do not feed radiators into wrong Material Inlets (three inlets each are for 19mm,21mm,25mm radiators respective);

5. This machine is suitable for processing one-layer radiators when it is shipped to customers. When you need to process two-layer radiators, remove the iron covers from the Lower Blade Roller to expose the blades.

6. When two-layer radiators are processed, the left side of the radiators shall touch the left side of each Material Inlet, and the first copper pipe in the Upper Layer to the left side of each Material Inlet must be nearer than the first copper pipe in the Lower Layer to the Left Side of each Material Inlet.

7. For both one-layer and two-layer radiators, the left side of radiators must touch the Guiding Rulers are radiators must be fed into Material Inlets along with the guiding rulers.

8. When radiators are fed into Material Inlets correctly, each Feeding Gear at the Material Inlet must be at the middle of each two copper pipes; or copper pipes and aluminum will not be separated.

9. Twisted radiators can not be processed.

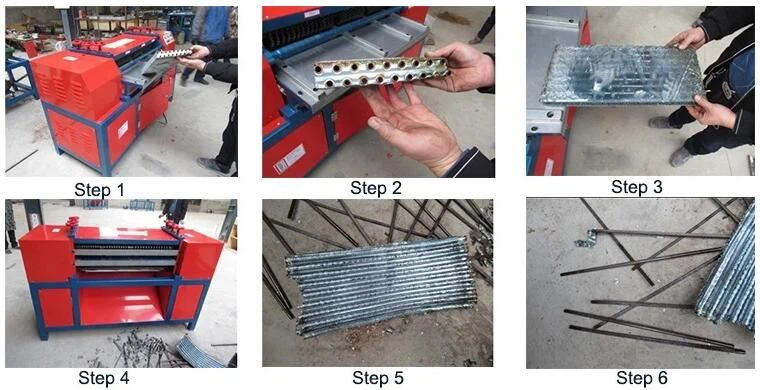

Process Steps:

1. Turn the Reversing Switch and check the rotating direction.

2. Inject oil into the two oil holes on the left and right side of the machine to lubricate transmission gears (usually once per 4 working hours).

3. Push different copper aluminum radiators into different Material Inlets according to their specs (19mm, 21mm, 25mm) for separating; the left side of radiators must touch the left side of Material Inlets, or the right side of radiators must touch the right side of Material Inlets (the first copper pipe in the Lower Layer shall be nearer to the Guiding Ruler); when radiators are pushed into Material Inlets, Feeding Gears will grab at radiators and take them into the machine.

4. After radiators are taken into the device, copper pipes and aluminum are separated and come out of the machine automatically.

5. According to the layers of radiators and their height, adjust each pair of Adjusting Wheels on the machine (after adjusting, tighten screws below).

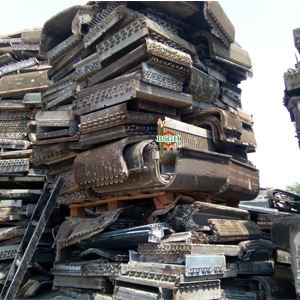

Suitable Raw Material:

Band saw can handle multiple layers of radiator

All kinds of radiators

For multi-layer radiator, adding a band saw is your best choice

Machine Parts:

Electric box

Reduction gearboxtitle2

Handle

Separation Final Product:

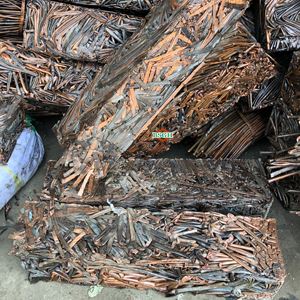

copper pipe

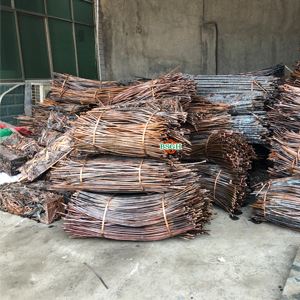

compressed and packed copper pipes

DOHA customer is satisfied

FAQ:

Q1: Can you make a single-phase machine?

A1: BS-1200P fits for three-phase voltage, if you want single-phase, we can also custom-made for you but need extra fee.

Q2: What is the processing range?

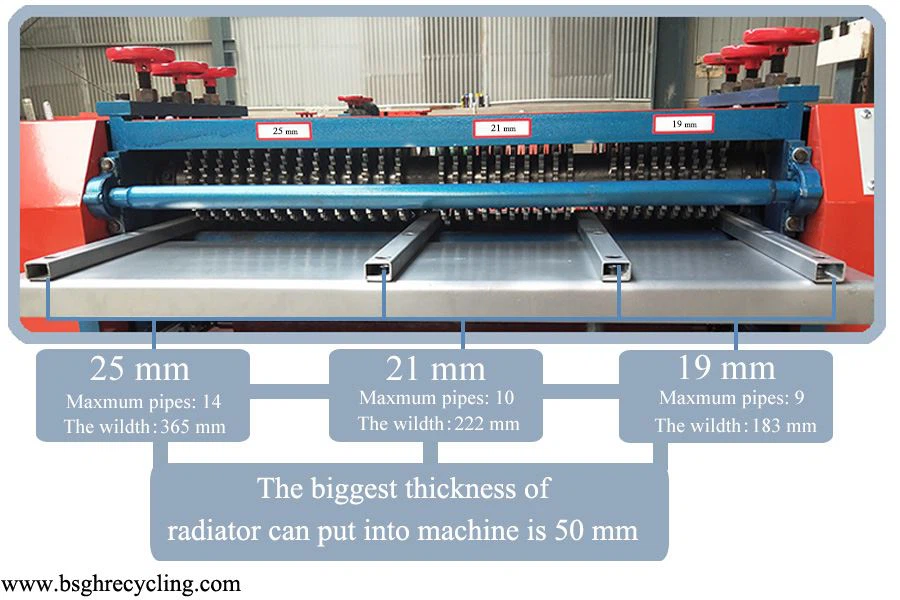

A2: The center distance of 2 copper pipes in the level radiator is 19mm,21mm, and 25mm. If another center distance, we can customize it for you.

●When the radiator center distance is 25mm, it can process 14 pieces of copper pipe. the  processing radiator big width is 360mm

●When the radiator center distance is 21mm, it can process 10 pieces of copper pipe. the  processing radiator big width is 220mm

●When the radiator center distance is 19mm, it can process 10 pieces of copper pipe. the  processing radiator big width is 180mm

Q3: How many copper tubes can I  process one time?

A3: When the radiator center distance is 25mm, it can process 14 pieces of copper pipe at one time.

      When the radiator center distance is 21mm, it can process 10 pieces of copper pipe at one time.

      When the radiator center distance is 19mm, it can process 9 pieces of copper pipe at one time.

Q4: How long need I change blades?

A4: Usually, when the scrap radiator processing capacity reaches 300T, you need to change several blades, specifically rely on blades' situation. And we also have blades changing video for your reference.

Q5: What's the maintenance for BS-1200P copper and aluminum separator?

A5: All our machine warranty is one year and you just need to change blades when have notch or not sharp.

Q6: How to change the machine from processing 1 layer to 2 layers?

A6: When the radiator is 1 layer, you can process it directly.

      When the radiator is double-layer, you can adjust the adjustment rod.

Q7: Does the machine have any protection?

A7: Yes, this machine has a light curtain for free to protect the worker safety, so you can rest assured to buy.

Q8: What's the processing time?

A8: To make BS-1200P serve longer, we recommend taking a break every 4 hours.

Q9: What should I do when processing 3/4 layers radiator?

A9: You need a band saw to cut 3/4 layers radiator to 1-2 layer then our BS-1200P radiator copper and aluminum separator machine can cut directly.

Q10: What should I do when copper can't separate completely from aluminum?

A10: See the following pictures.

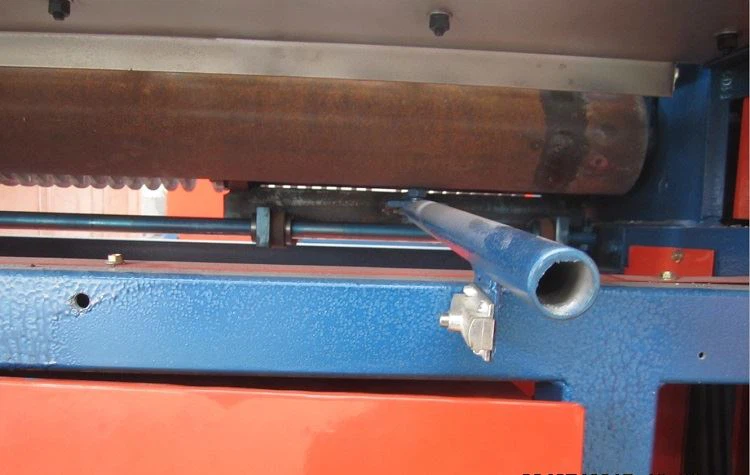

The first row of handles is to adjust the raw material inlet teeth;

The second row of handles is used for blade adjustment;

The third row of handles is used to adjust the radiator outlet.

Note: Both left and right handles must be adjusted at the same time
