Automated Plastic Sorting Machine
1:The Automated Plastic Sorting Machine's capacity is 200-250 KG/H,the size is L8000*W2100*H2100mm.The weight of this machine is 1500KG, the power is 19.25KW.
2:The equipment is a complete set of assembly line layout, which is controlled by the PLC automation programming and man-machine interface operating screen: reasonable coordination of intermediate transport and upgrading links and the sorting host for the purpose of automatic transmission and automatic discharge, which saves labor and can be easily operated.
3:High sorting purity, and the highest sorting purity can reach up to more than 99%.
4:Physical sorting, energy conservation and environmental protection without any discharge of the three wastes.
Product Details
Automated Plastic Sorting Machine Introduction
More and more plastics processors are turning towards recycling. Not only does this save energy, but used plastics are often cheaper than their new counterparts as well. However, recycling used plastics is a profitable venture if the material has previously been separated into homogeneous fractions by color and type in order to meet high quality standards. Our sorting systems are there to handle this job – with precision, reliability and efficiency.
BSGH is one of the leading specialists in industrial plastics-sorting machines and systems. Our machines reliably differentiate between materials using various types of sensor technology and efficiently separate material flows into homogeneous fractions.
Automatic Plastic Sorting Machine is suitable for material sorting of all kinds of broken plastics of household appliances, cars and electric cars, electric toys and other mixed plastics of the special equipment after metals are removed, such as PET/PVC, ABS/ PS /submerged PP, PC/PA, ABS/PA, ABS/PC and other plastics in different groups.
Machine Sorting Principle
1.Before entering the electrostatic separation high-voltage space, the material to be sorted must be pre-charged by a special device to generate a corresponding charge under its own collision
2.Because the particle size of the material in the separation process is significantly different from the congratulation of the material itself, the uniformity of the material particles and the weight of the material are also affected during the separation process. Next, the effect of the separation purity on the recovery purity can be improved by sieving different particle sizes, and the selection of the separation voltage can be adjusted to control the purity of the recovered material for particles with relatively small differences in particle state.
3.The high pressure required for the separation of different material particle sizes is different, so before the material enters the host, the crusher should be used to crush the material into particles or flakes of about 10MM, so that the separation effect reaches the ideal state.
Automated Plastic Sorting Machine Data
| Model no. | power | Machine size（mm） | Voltage | capacity | weight | recycling rate |
| BS-MS250(1200) | 19.25kw | L8000×W2100×H2100 | Customized | 200~250kg/h | 1.5T | 99% |
| BS-MS500(3000) | 19.25kw | L12000×W2100×H2100 | Customized | 400~500kg/h | 2.0T | 99% |
Product Features
1. Automatic design, PLC automation programming, low noise, easy operation.
2. High purity rate up to 99%. high efficiency by high voltage electrostatic.
3. Environmental friendly,physical sorting, without any discharge of waste gas or waste water.
4. Reasonable Design and layout and easy maintenance.

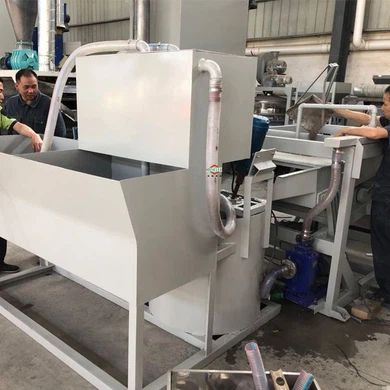

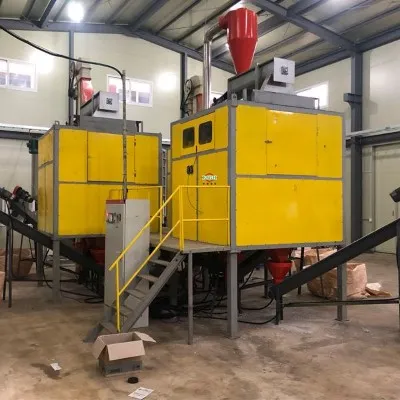

Automatic Plastic Sorting Machine Display
aluminum plastic separator machine
aluminum plastic separator
BSGH EQUIPMENT Aftersale Service
1: Overseas technical support available.
2: All day long 24hours service,call me : 008613772508206.
